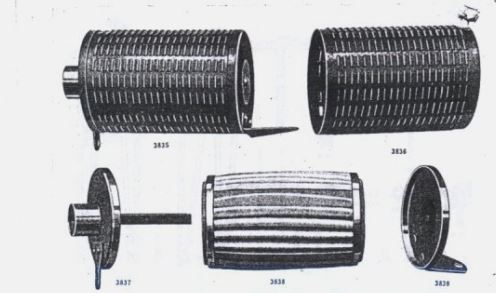

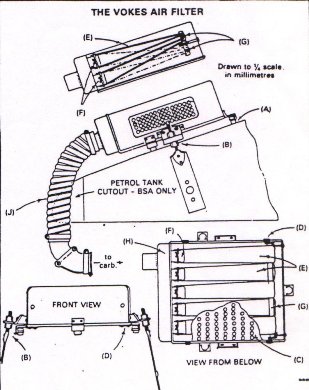

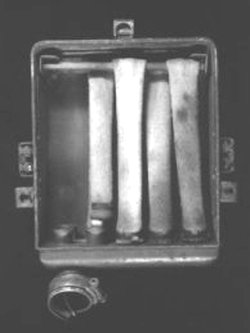

The first type of Air Cleaners seen on Norton motorcycles were the louvred biscuit tin type circular Air Cleaners applied to the right hand rear side of WD16H motorcycles destined for Palestine and India in 1936. The rear wheel is valanced with a removable piece of sheet metal. The valance obviously serves as a shield to deflect stones and excessive dirt in general from reaching the filter.  This filter is described in 1936 spare parts list (contract C8753) with Norton type part numbers. The Cleaner was described in the Norton Assembly books as "Vokes C1a Protectomotor Air Cleaner", so in spite of the Norton part numbers, it was obviously made by Vokes.  Protectomotor was a brand name from Vokes describing a star shaped filter element in a louvred container.
Mechanisation Experimental Establishment  (MEE) tested the air cleaners on Norton WD16H (C 352877), Triumph model N (C 19467), BSA (C 33363) and Matchless 36/G3 (C 353555) in 1936.
The Norton, Triumph and Matchless had the filter mounted to the right hand rear while on the BSA the filter was mounted to the left hand front frame tube with the connecting tube attached at the bottom. A later type BSA was seen fitted with this filter in approximately the same right hand rear position as the other brands but the filter was rotated to fit the connecting tube at front.

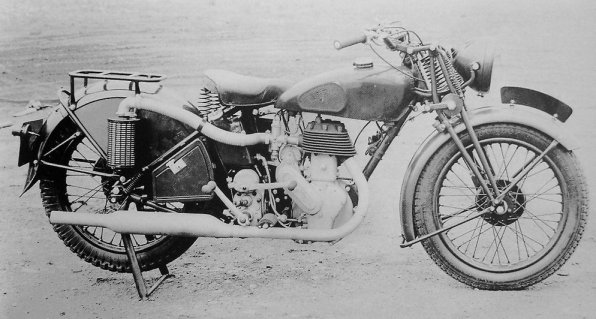

(IWM HU93246)

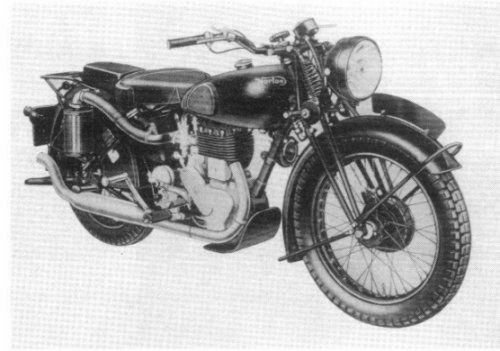

1936 16H also seen on picture of shipment  destined for Palestine,
likely from Contract C8753.

Bernhard Hope in 1942 after Alamein. "He was riding East to Sidi Barrani from Tobruk, Libya, and he was doing at least 60 hence his ANZAC slouch hat hanging round his neck" (remark from the photographer). The bike still sports the tubular Air Cleaner first seen in 1936!  Was this one of those bikes destined for Palestine? Only the speedometer is additional to the pictures of 1936.


a picture from a bike as proposed for an "India" contract. It shows the 1938 engine (no oil tell tale), upswept silencer, large crankcase shield, front mudguard stays with lifting handle, pillion seat, saddle with knee padding and lugage carier, all given in a 1939 spare parts list (Government of India contract Y6730/8279).  Contrary to that spare parts list however, it still shows the earlier round C1a protectomotor air cleaner.

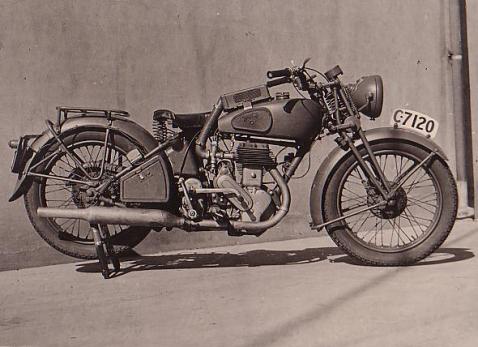

A Norton tank top  Air Cleaner on a pre/early wartime production machine in Australia, also sporting a petrol tank with the rear end cut-off to facilitate the hose.  It shows to have a fixed, one piece, elbow, contrary to the later types using an adjustable 3 piece elbow. The bike itself is as made upto October 1940.


The MEE considered the Vokes C1a Protectomotor adequate for its purpose but "making it more or less impossible to carry a pillion rider".  To reposition the filter, Norton designed and manufactured (still in 1936) a panel type air cleaner consisting of three felt tubes folded over a spring loaded rod at front,  having elliptical tubes to the header to which the felt tubes were clamped. "The element is protected by perforated metal covers and the whole cleaner was of tapered shape and a curved base to suit the top surface of a petrol tank of a 16H Norton motor cycle".
The MEE tests indicated that this configuration could be improved to reduce the dust gathering between the sides and the tubes which resulted in some erratic running and to increase the number of perforations in the sides and some modifications to the felt tube mounting and tensioning rod.

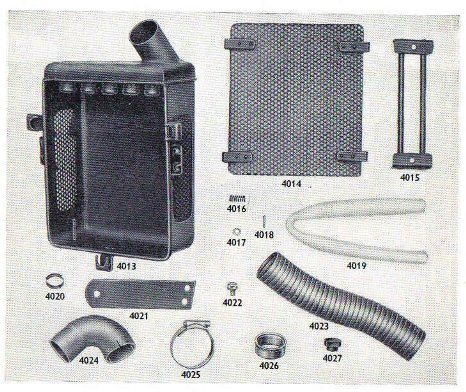

Based on these comments, Norton designed and manufactured a "modified" panel type air cleaner which in the end became the "Universal Air Cleaner", VAOS part MT12/NC/11783. (Within the VAOS spareparts system, part numbers with "NC" are Norton spare part numbers.)
Early 1937 MEE tested this modified version and found it "satisfactory for use" .

Between 1937 and 1942 this panel type air cleaner was manufactured by Norton and used on various WD16H versions for e.g. India contract machines and Australian Army  machines (See C7120 pictured above). It was also applied to the prototype Norton Big 4 (C 385695) of 1938.

In 1939 MEE tested the modified filter on Triumph 342cc (3SW, C38647) and on Matchless 346cc (G3, C3811084) to "ascertain the most suitable position on these types".  On the Matchless, the panel type was mounted on its side in the position as the previous C1a Protectomotor including a valance on the mudguard. Fairly peculiar in relation to the initial reason to develop the panel type filter in 1936!  On the Triumph, the filter was mounted on the petrol tank.

According to the contract ledgers, Norton delivered these panel type air cleaners upto September 1942 at which time a Norton order was cancelled and replaced at the Vokes company. Vokes was a renowned air filter manufacturer and possibly more suited for the manufacture of the air cleaners. What is not clear is that Vokes may have been the manufacturer of serial Aircleaners after the initial Norton development and that they were purchased by Norton and initially sold as a Norton product.

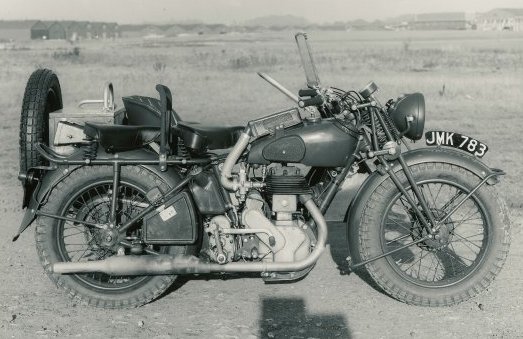

1938 prototype WD B4, showing fixed (non adjustable) straps to the kneegrip screws and non adjustable elbow to Carburetter. Note the petrol tank with cut off rear end.

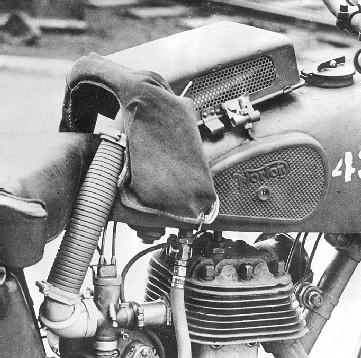

Showing the filter with adjustable straps, adjustable elbow and the canvas "Pad, Air Cleaner Protector MT12/NC/121292", retrofitted to a 1940 WD16H (C438709x) with standard petrol tank.

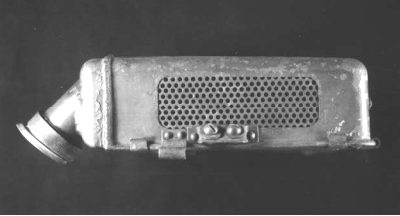

PREWAR VOKES C1a PROTECTOMOTOR AIR CLEANER

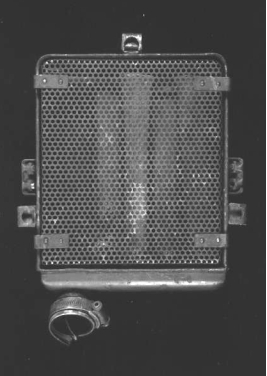

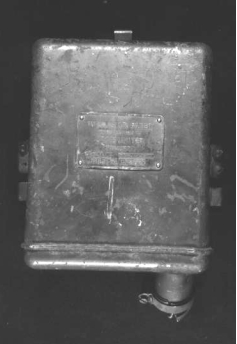

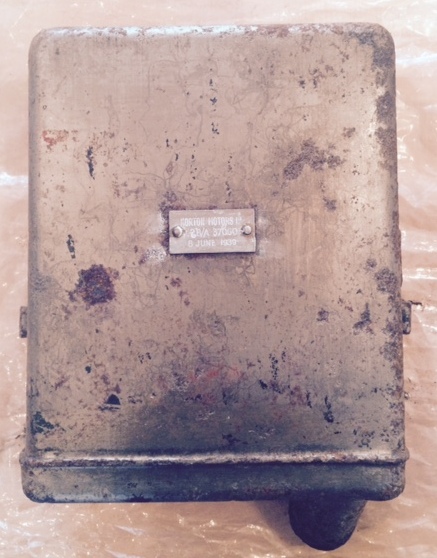

NORTON  PANEL TYPE AIR CLEANER (1938/1942)



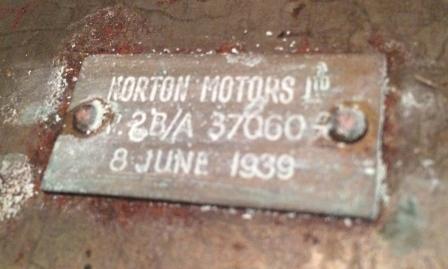

Filter identification by Norton, notice the non-adjustable straps fixing the filter to the kneegrip bolts and the fixed elbow to fit hose to carburetter.



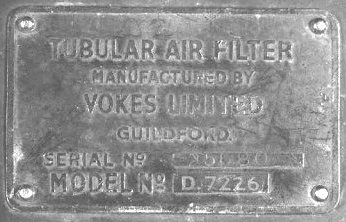

VOKES, September 1942 and later "Universal Air Cleaner"

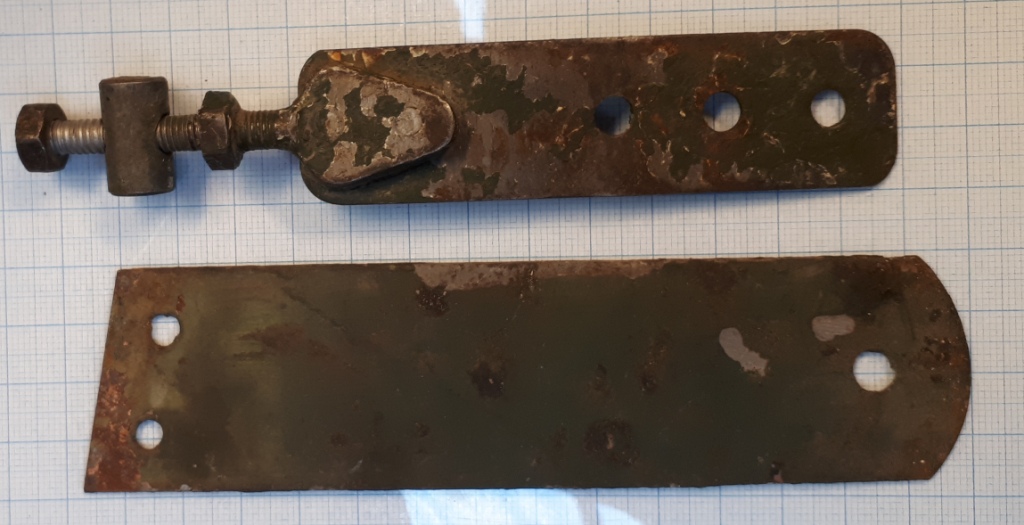

It appears the adjustable fixing strap is a later war development.
The three pads resting on the petrol tank were initially made from rubber. Felt versions have been found as well which may have been for conservation of rubber or just an alternative.



Top later adjustable type,
bottom early fixed type.

(clik to enlarge)

elbow piece assembled (HJ)

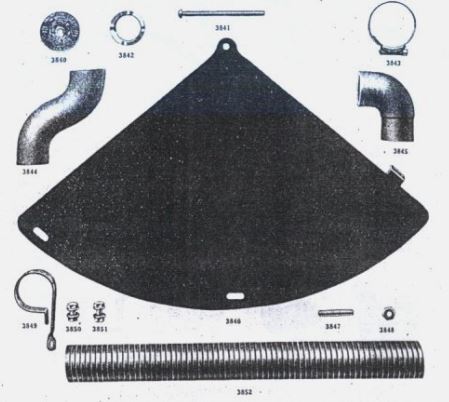

Adjustable Elbow Piece assy.

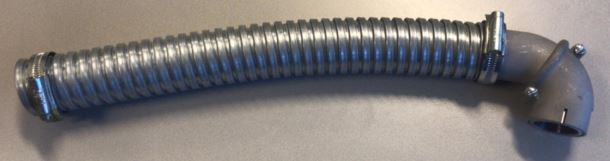

Elbow piece individual parts (HJ)
Elbow Piece Parts

Some history on the Vokes firm can be found on https://normandyhistorians.co.uk/vokes.html



THE TALFLOW AIR CLEANER

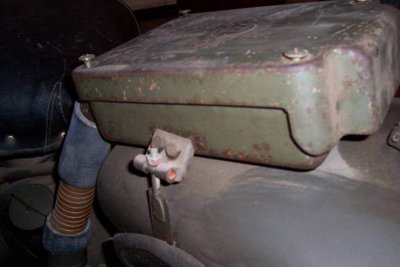

A less well known Air Cleaner was the "Talflow Air Cleaner", a product made by the "the Talboys Manufacturing Co. Ltd.".
Talboys was co-founded by W. Mansell (director of Norton Motors) and made sheet metal products for Nortons, petrol tanks for certain and oil tanks most likely.
The brass plate found on a number of filters shows a "patent pending" text. This patent was initiated in 30th July 1940 and finally accepted on 7th November 1941.
A fair number of cleaners surfaced in 2020 without the brass identification plate.
This Air Cleaner has an internal rack with staggered screens which needed to be oiled in order to "catch" the dust particles.
The rack was easily removable from the casing for cleaning and oiling. The entire rack was also wrapped in a textile/felt material soaked in oil.
Rack and felt are to be cleaned and oiled with a frequency depending on the dust circumstances.

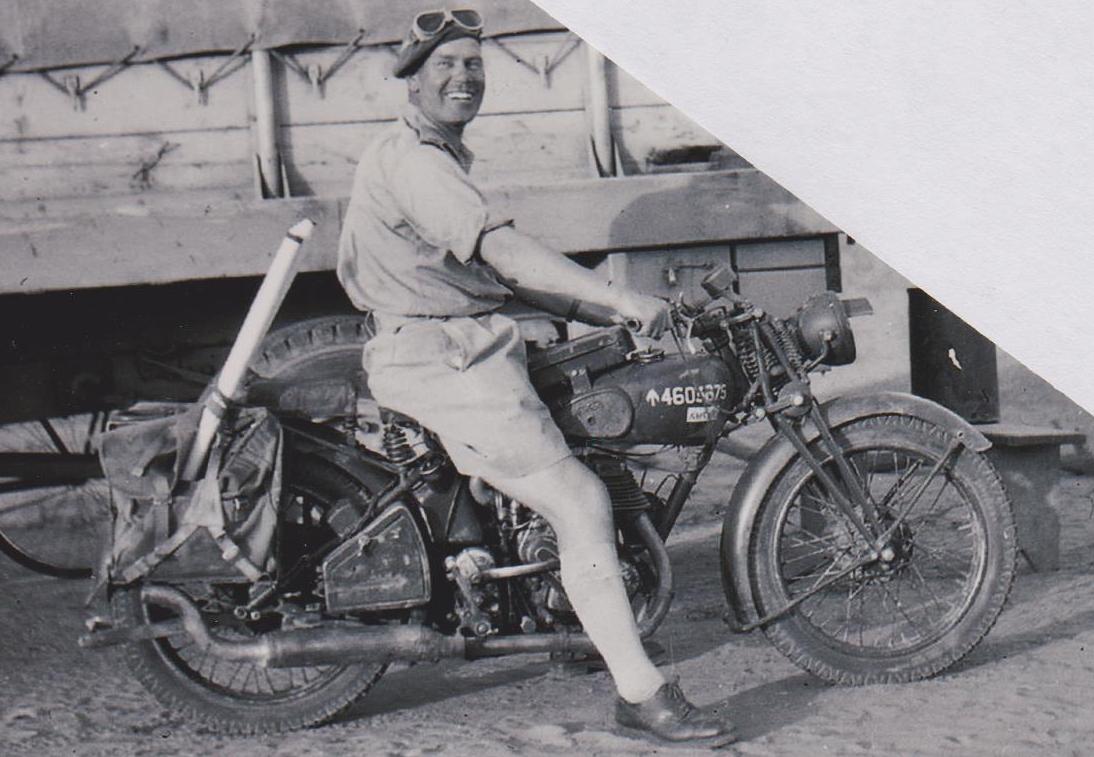

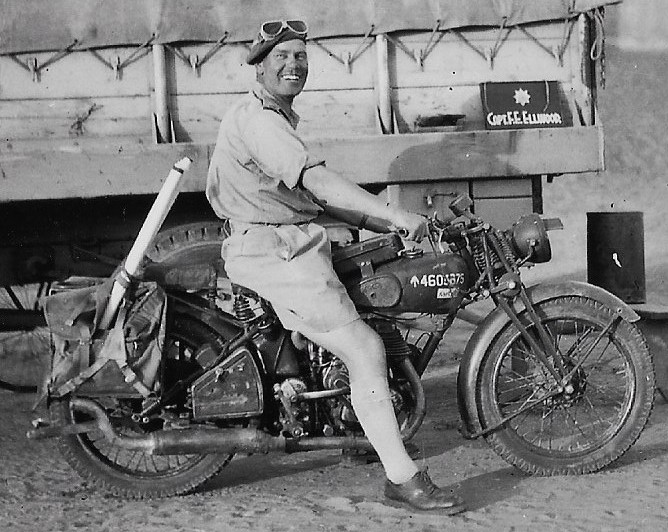

Contrary to expectation (the link with Norton director Mansell), only one picture has surfaced until now (2020) showing a Norton with this Talfow Air Cleaner.
One available Contract ledger entry shows an order for 13.472 air cleaners for "motor cycles India" around September 1943, indicating a far East link.
Norton engine books indicate that new WD16H machines delivered to India Office in 1946 were provided with Talflow Air Cleaners.



Some history on the "The Talboys Manufacturing Company Ltd." firm can be found on https://www.gracesguide.co.uk/Talboys_Manufacturing_Co




The Talflow filter on a BSA M20 for India Office with non adjustable fixing.

Brass identification plate

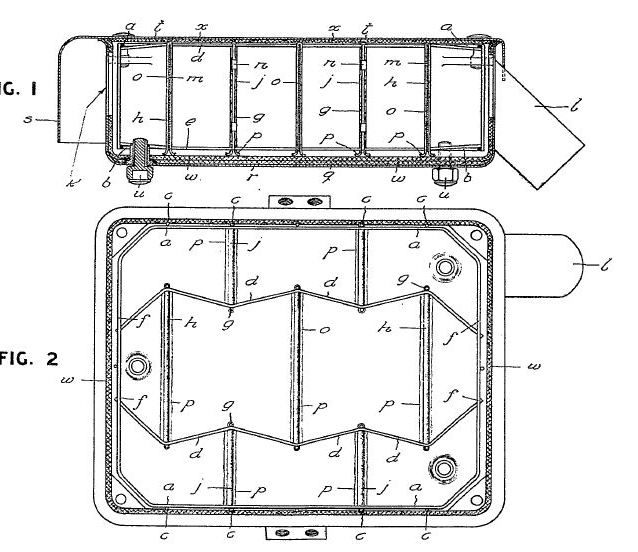

Patent drawing


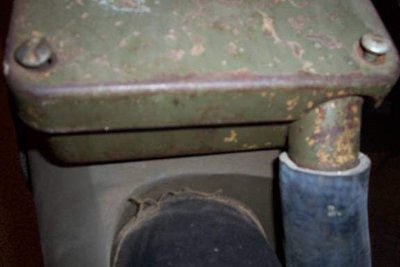

Rear end view


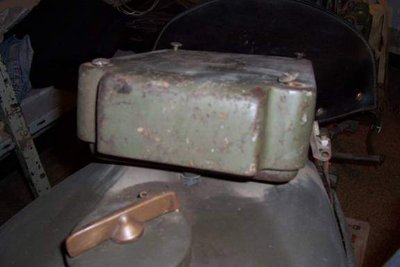

Front end view


Side view

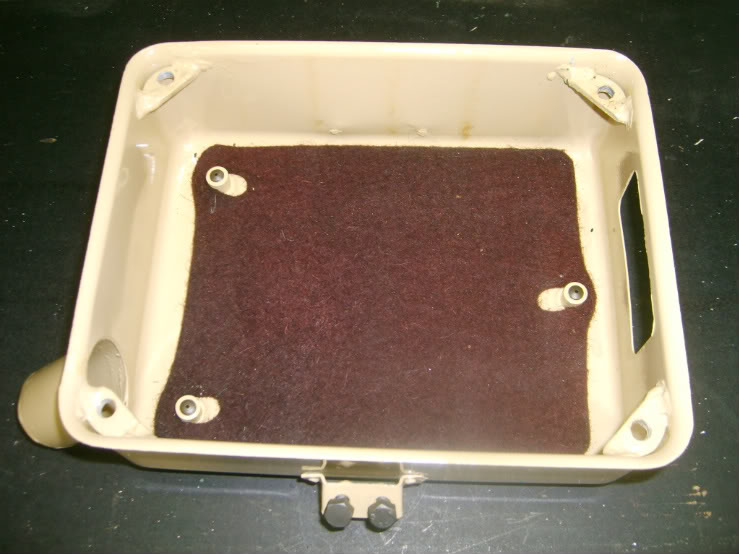

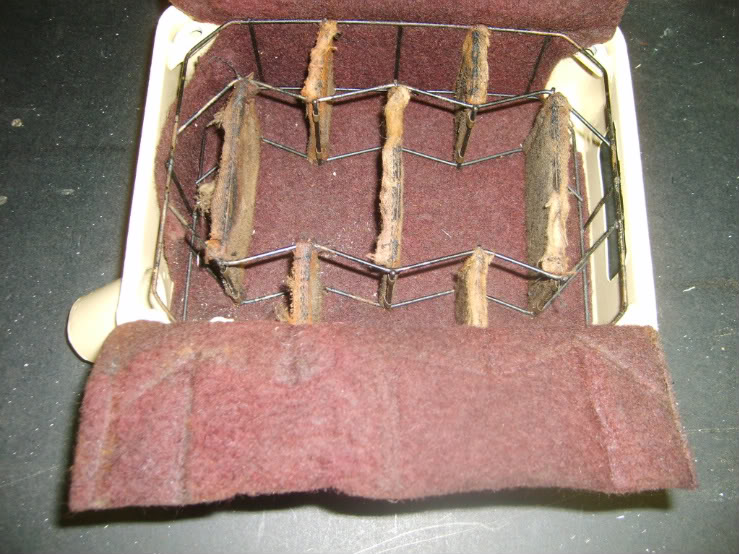

Internal view with felt covering

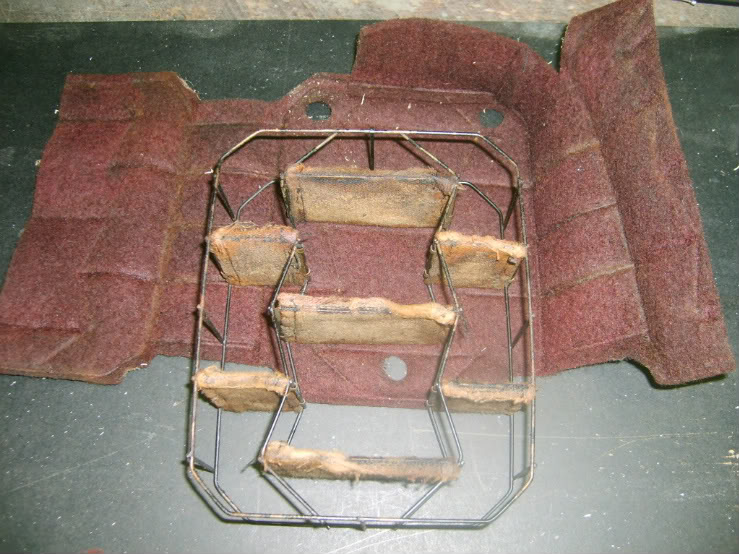

Internal rack


Bottom felt
