A survey of tools used on military Nortons,
primarily 16H as there is little information on the Big 4 tools
which at least added a hydraulic jack and a special rear wheel nut
spanner to the 16H list. (With much help from Richard Payne (16H)
and Lex Schmidt (Big4)) |


|

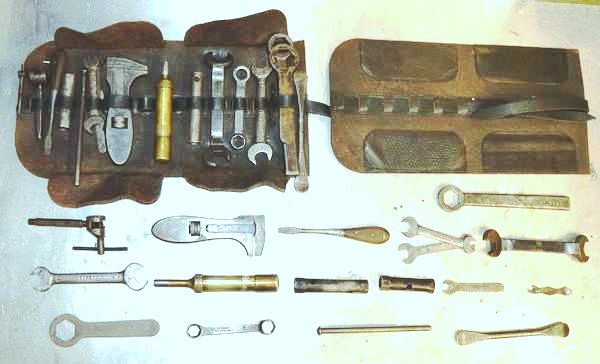

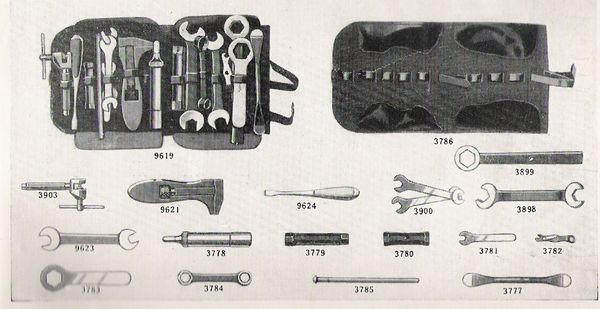

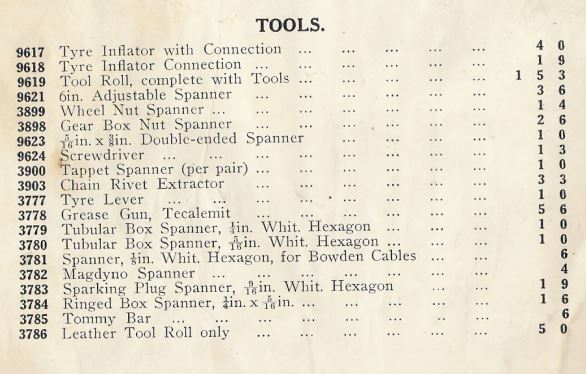

16H Tools as shown in early spare parts
lists

|


|

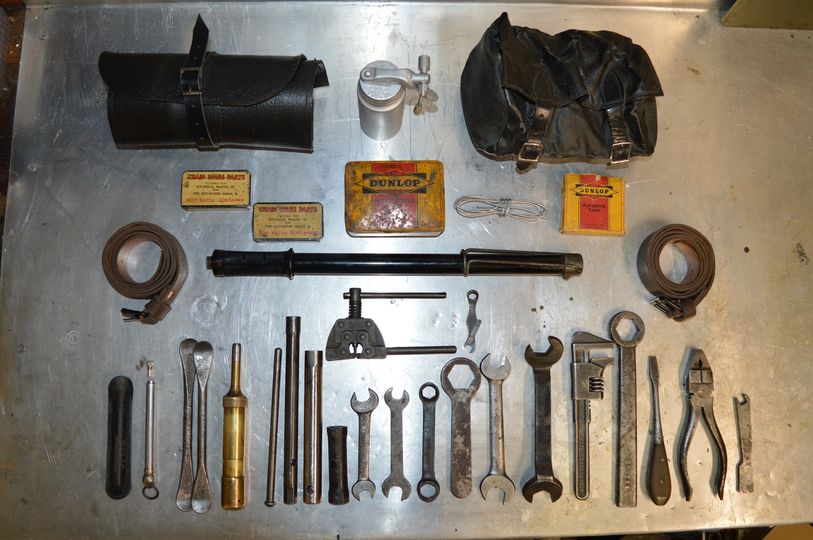

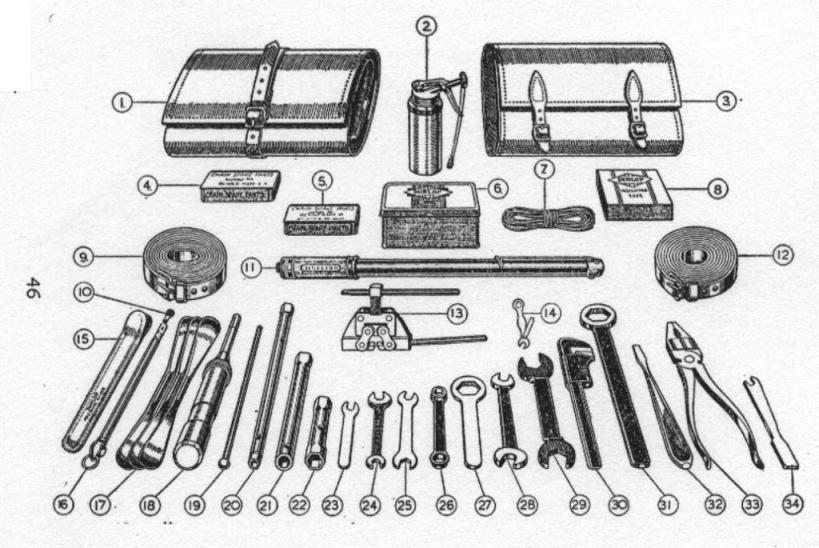

16H tools as shown in Maintenance Manual and
Instruction Book
Tools not mentioned in spares lists after contract C9062 (1941)
|
|

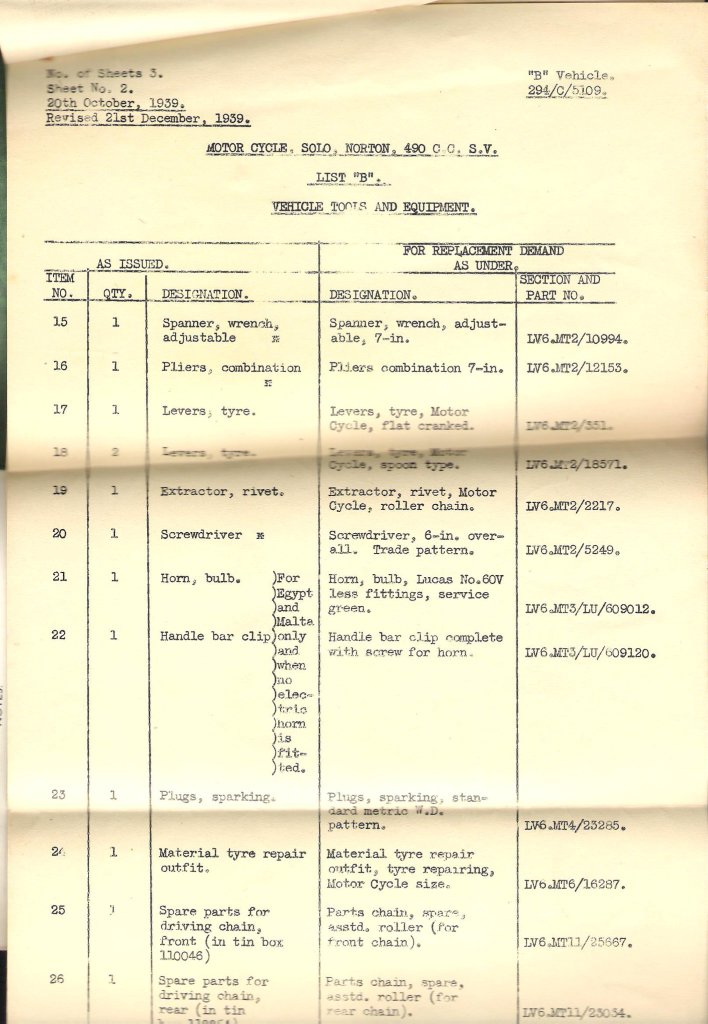

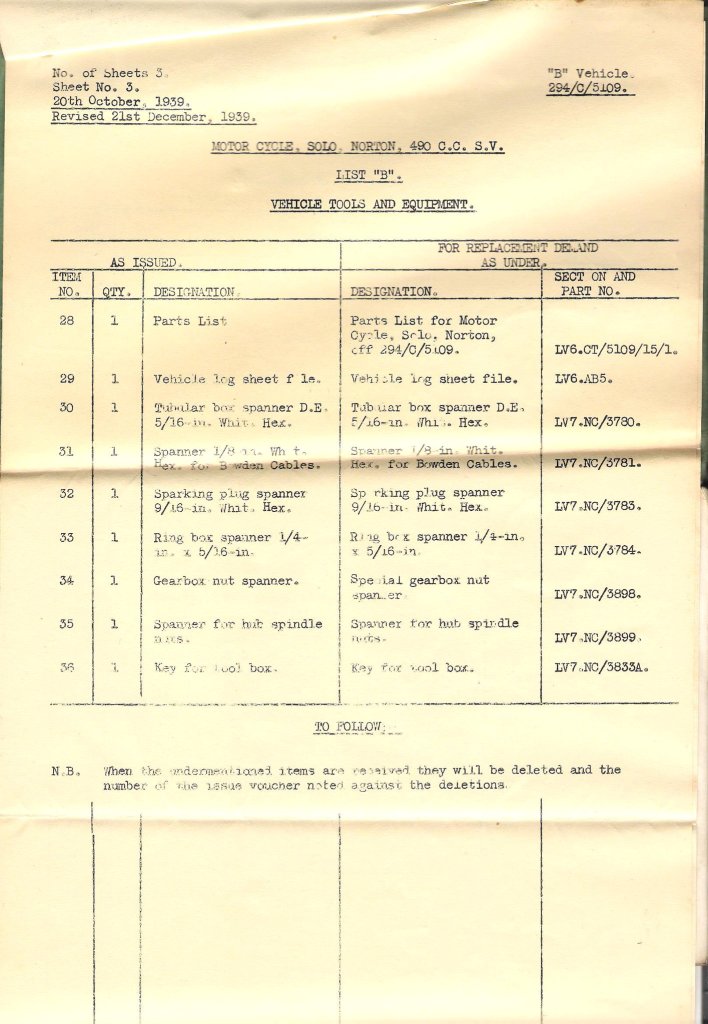

Tools listing for C5109 (Click on
picture to enlarge)
|

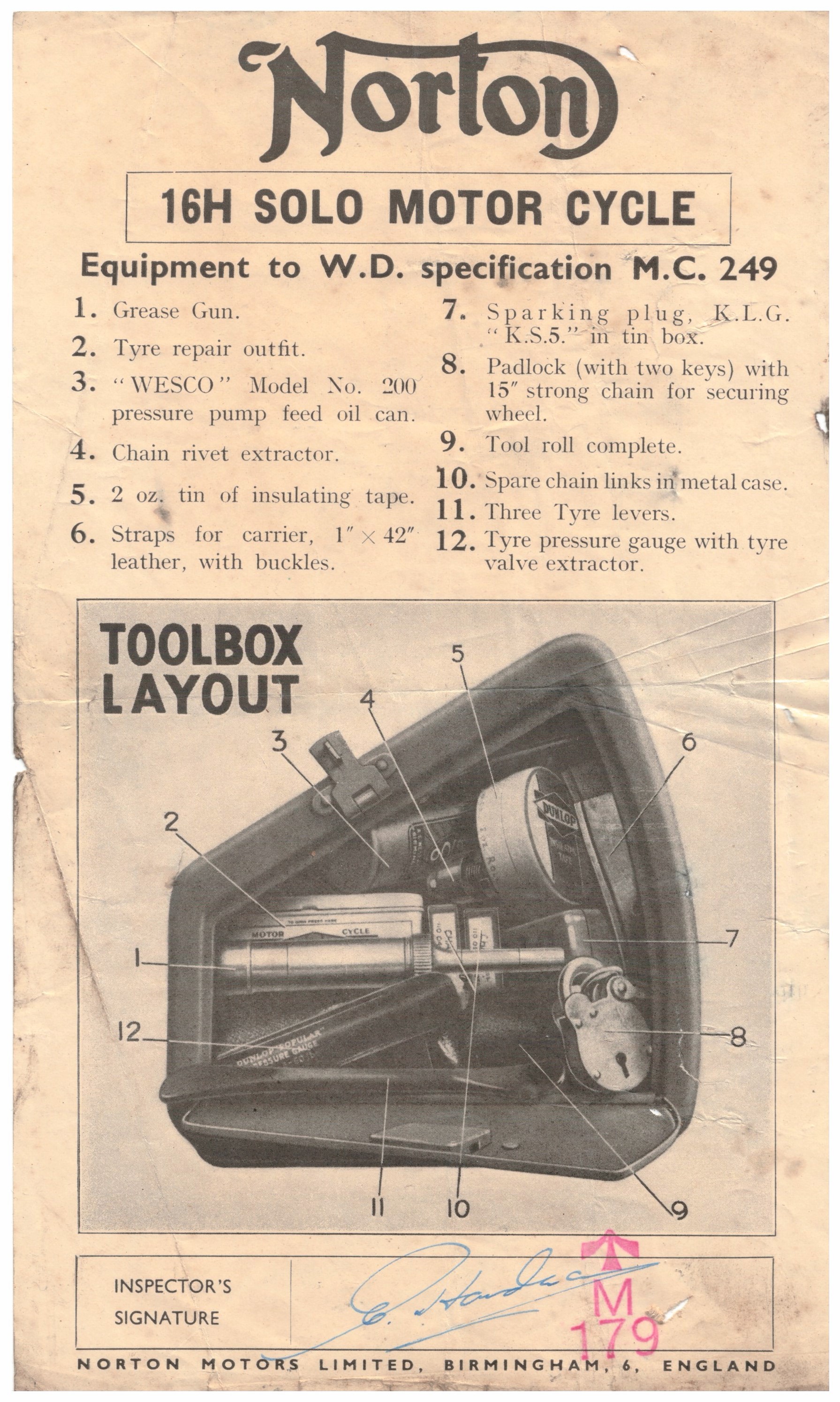

Equipment to WD spec M.C. 249
 |

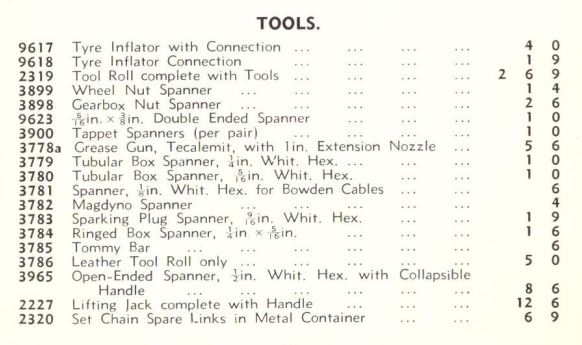

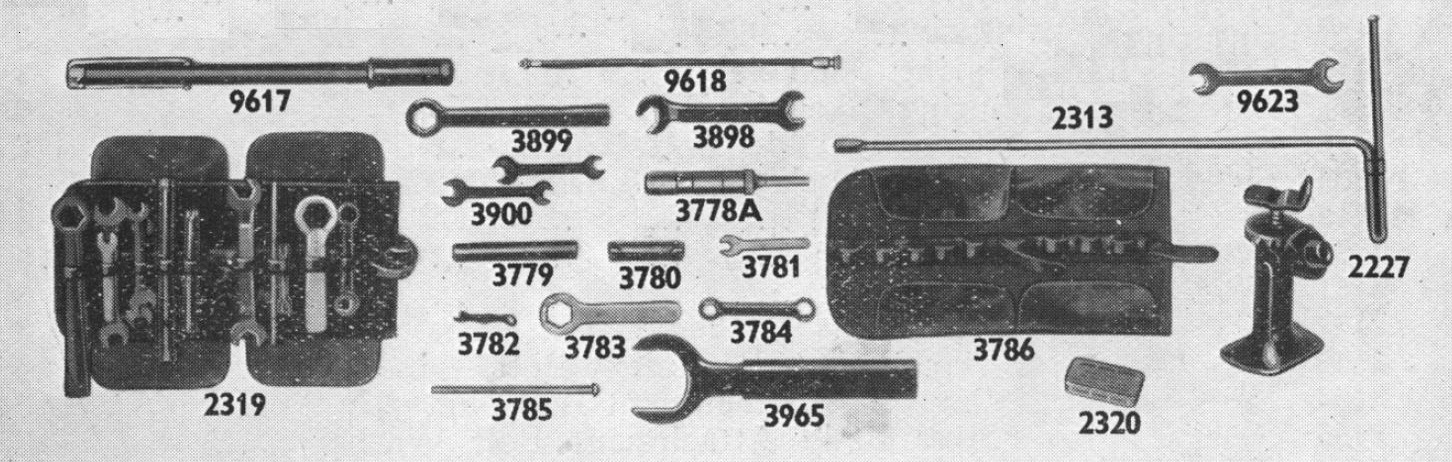

Special tools for WD Big 4


 |
Most tools identical to 16H but 2 additional tools.

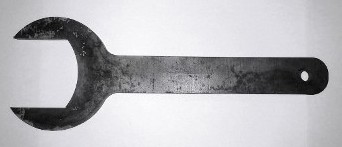

3965 is repro missing the extension tube handle.

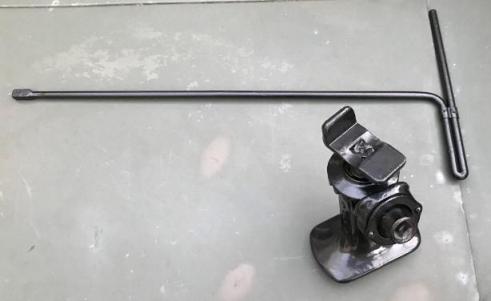

The jack is a Shelley 7DL with L-shaped jacking point and 1/2"socket.

Tools not mentioned in spares lists after contract C7576
(1941) |
