Illustrated parts B4  (iss. 030)

Back to change notice



Click on picture to enlarge

Parts illustrations as found in spare parts lists for contracts:
294/C/7576

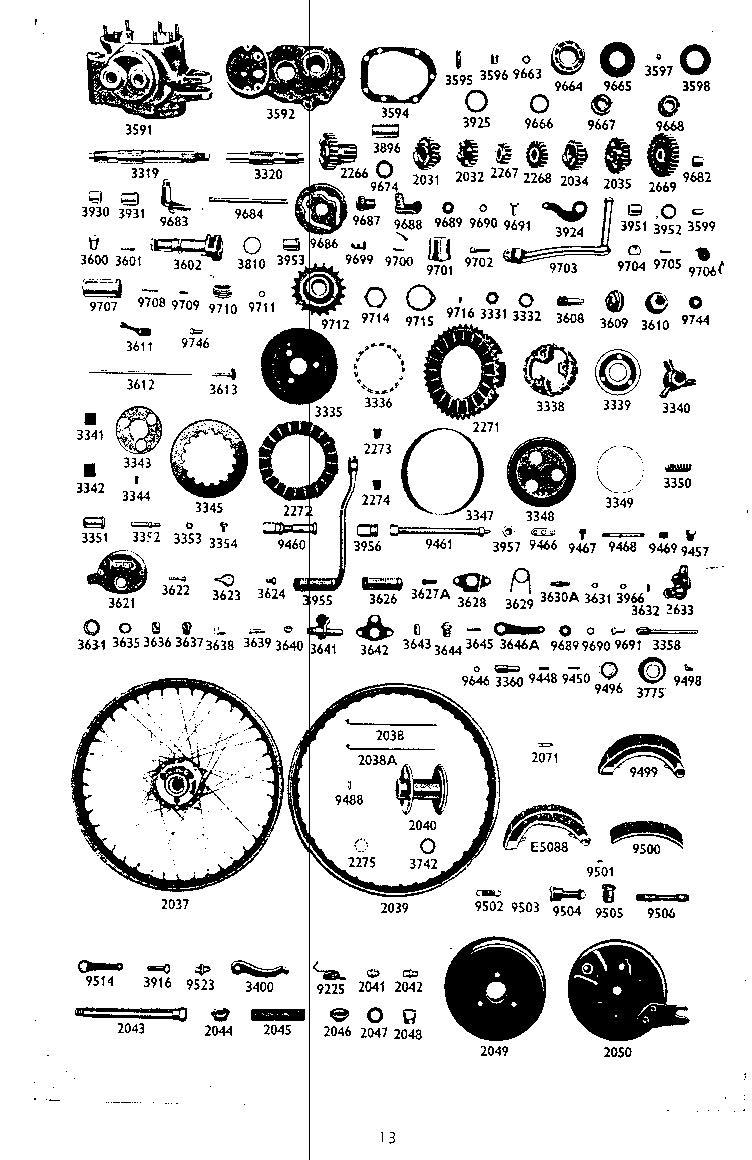

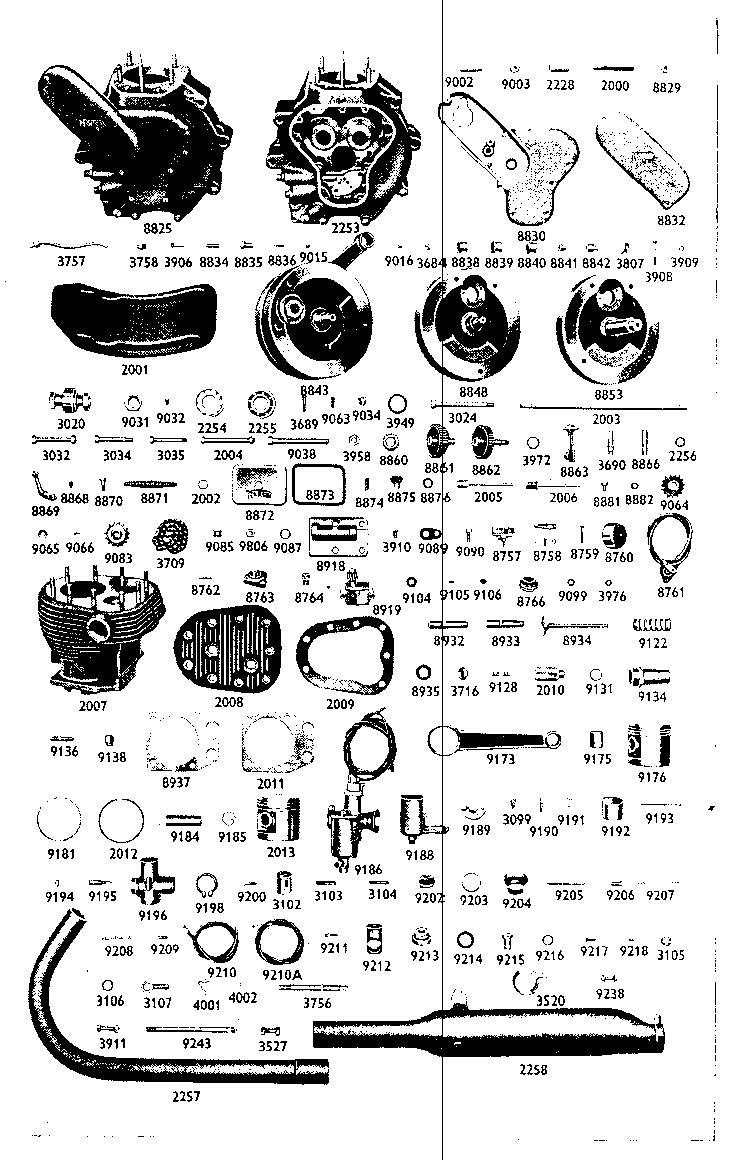

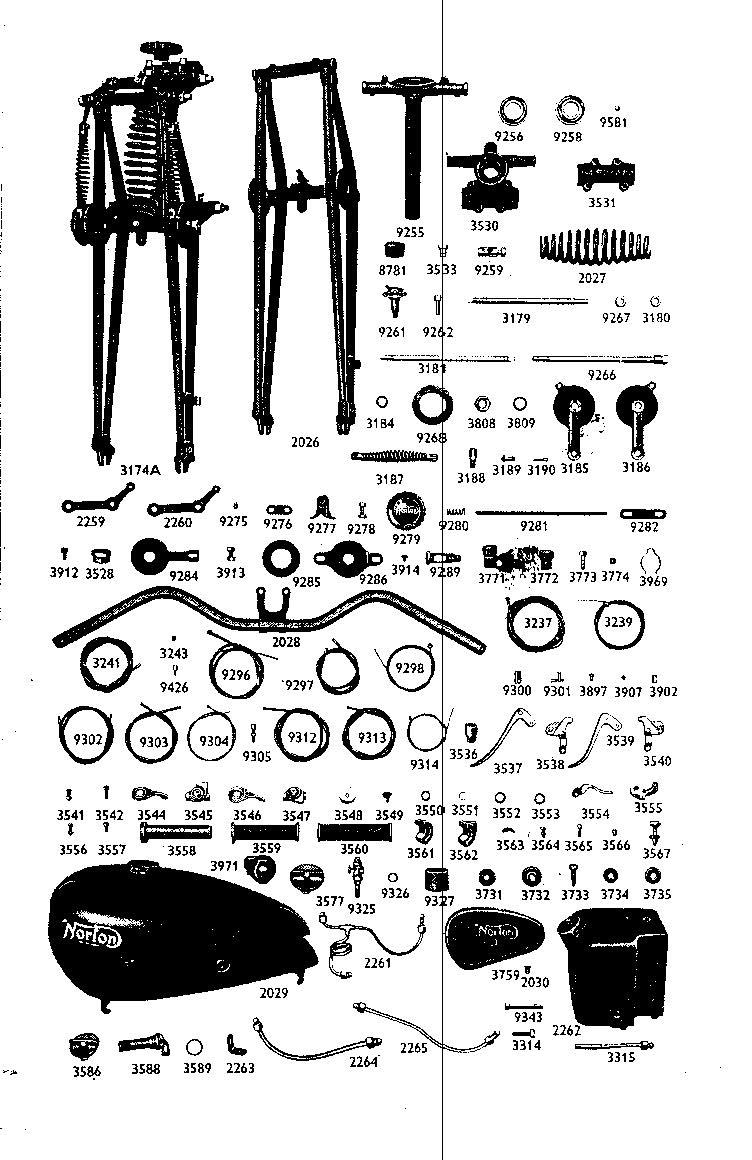

big4 spare parts 1.jpg (200314 bytes) big4 spare parts 2.jpg (167710 bytes) big4 spare parts 3.jpg (187888 bytes)

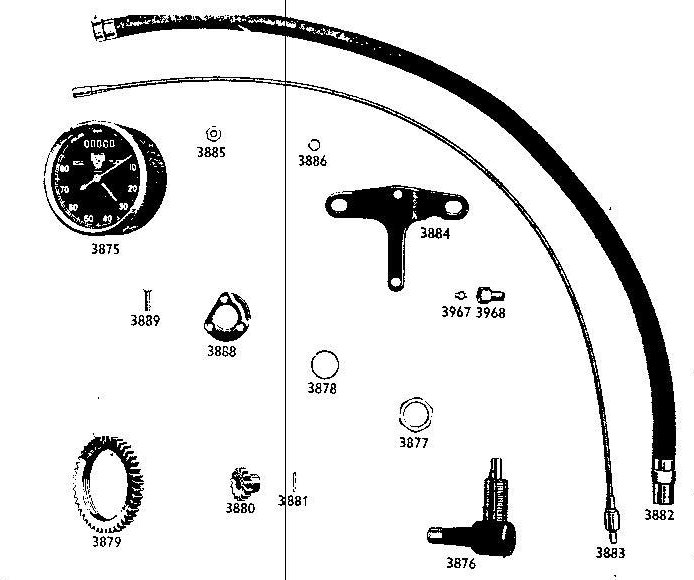

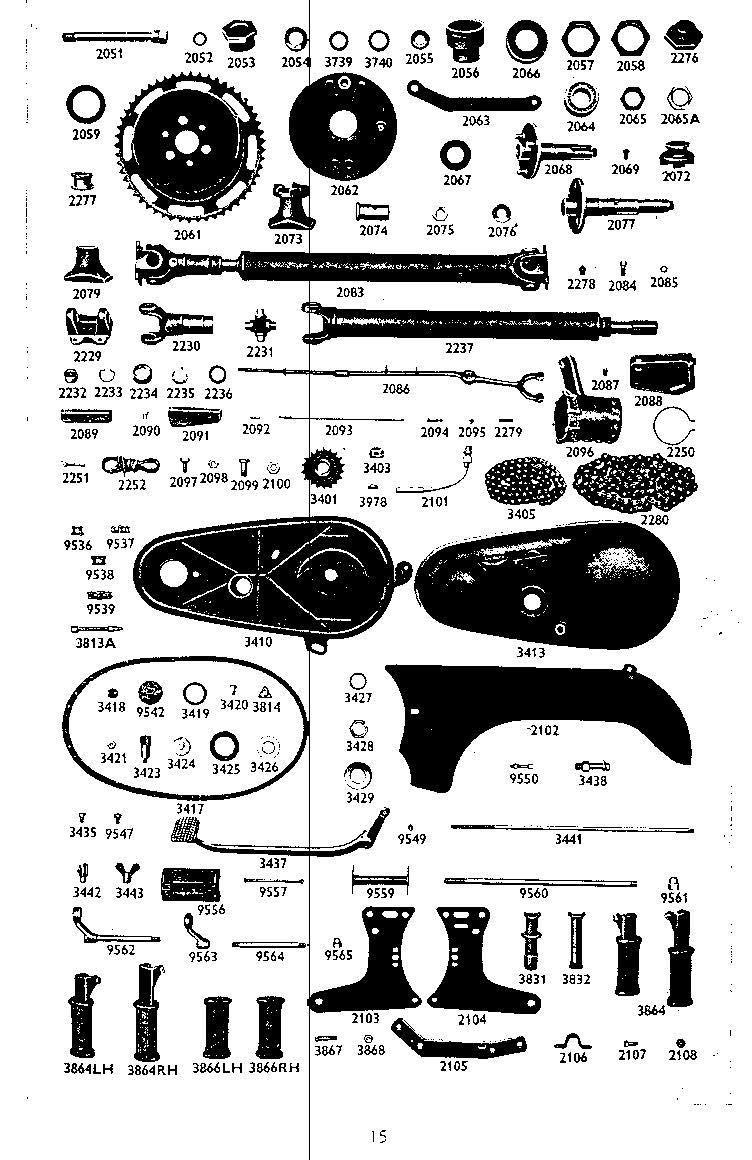

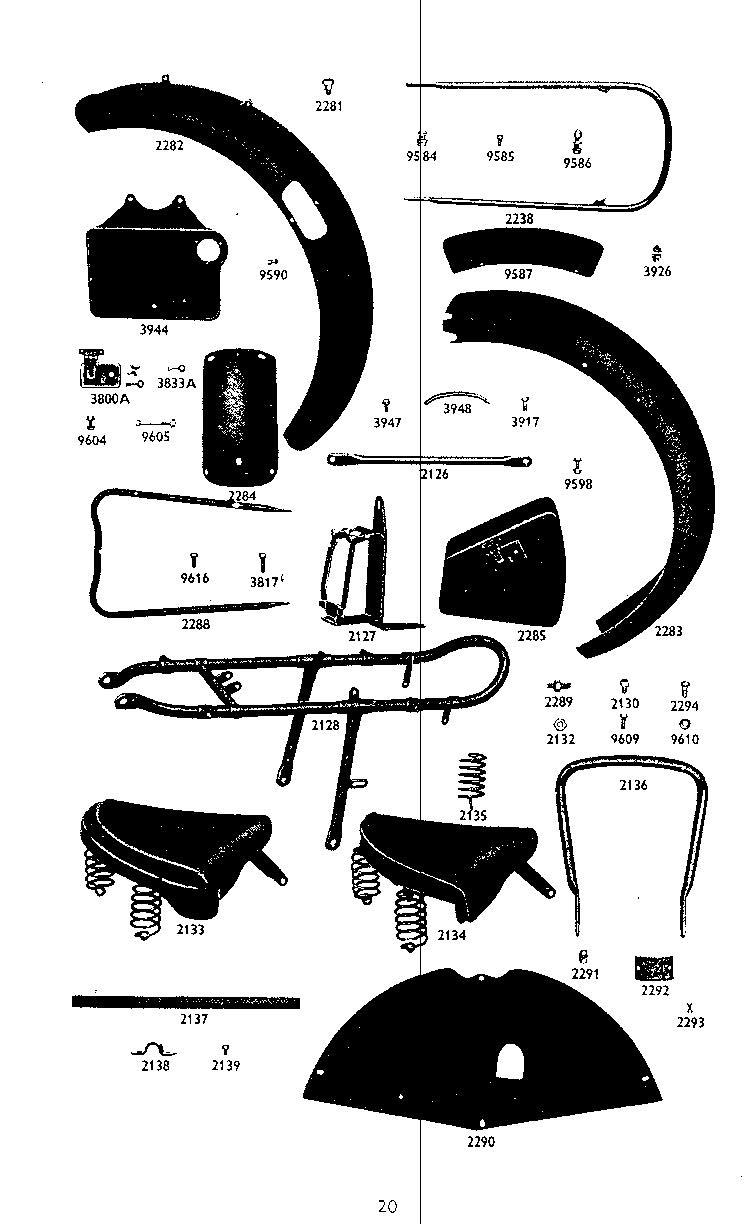

big4 spare parts 4.jpg (174763 bytes) big4 spare parts 5.jpg (56699 bytes) big4 spare parts 6.jpg (113403 bytes)

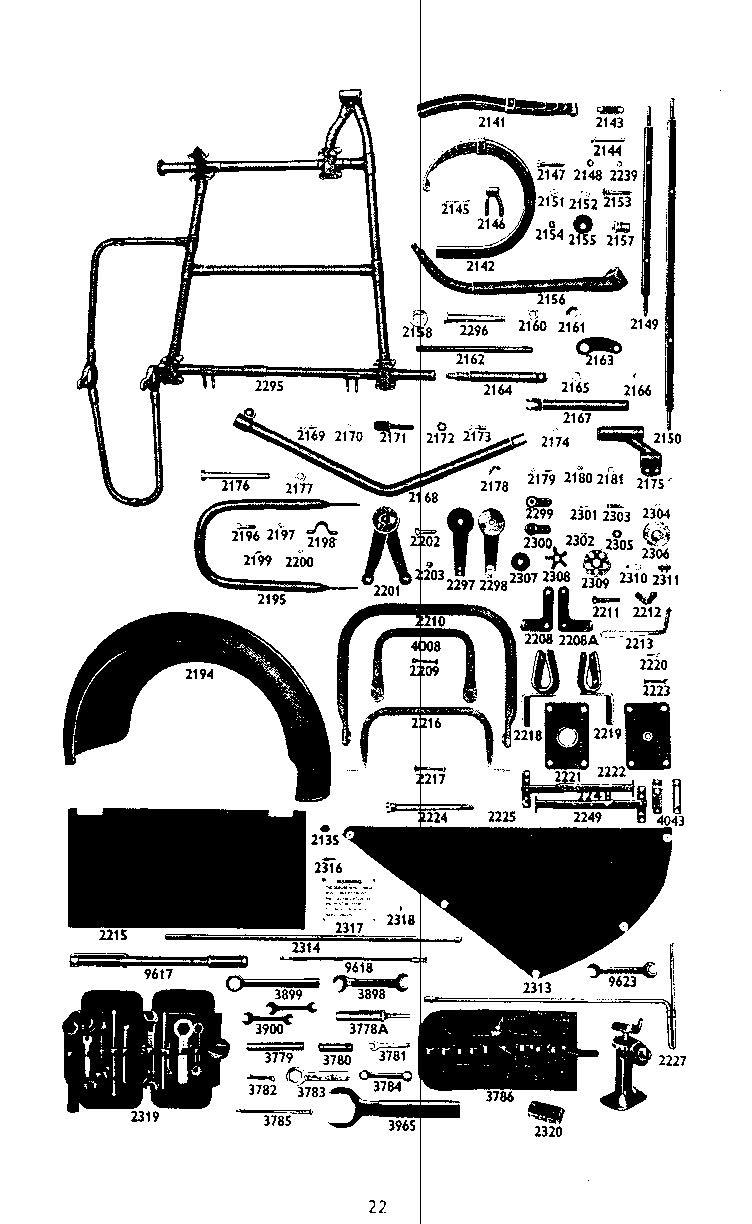

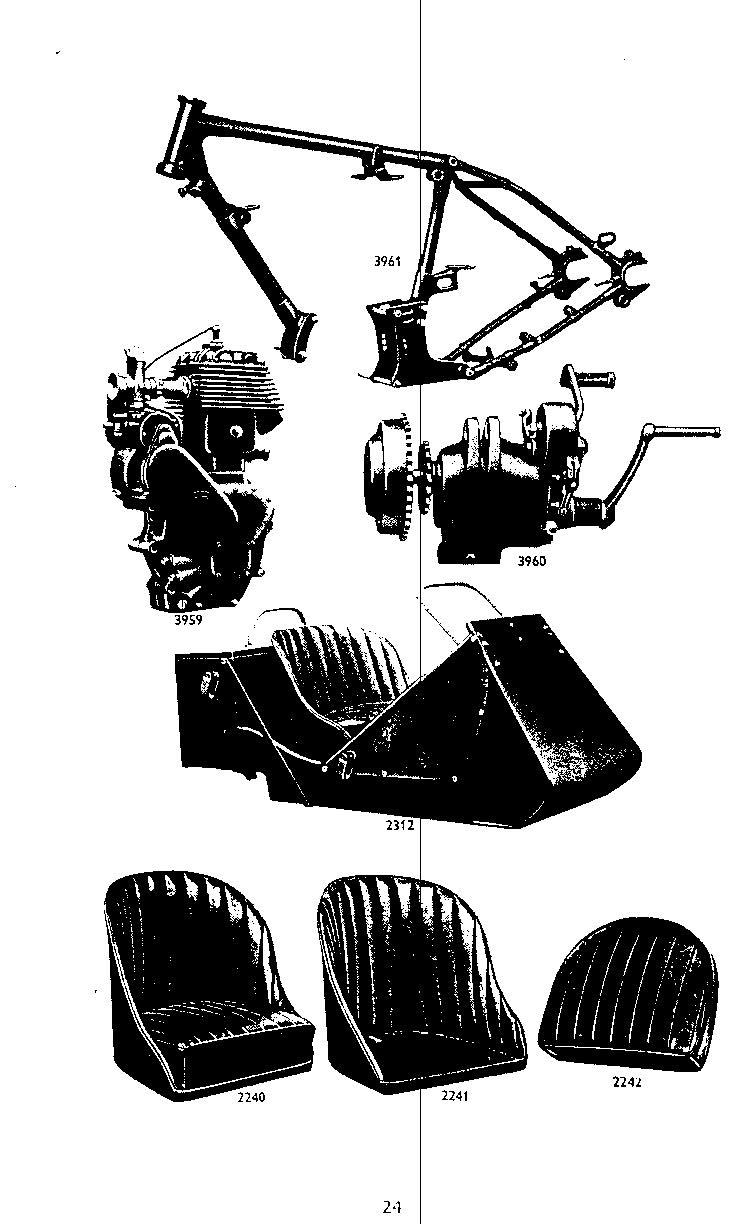

big4 spare parts 7.jpg (156169 bytes) big4 spare parts 8.jpg (123549 bytes)
