16H sidecar (details) variations  (iss. 044)

Back to change notice

This page intends to categorize all variations found on military 16H sidecars. I do not pretend to have it complete, but it will cover most found variations. If anybody can add more (proven with photographs) I will be glad to hear. The sequence is arbitrarily taken from the left to the right. Parts which to my knowledge have not changed are not mentioned.
The basic user of 16H machines with sidecars was the RAF. A number went to the Royal Navy. To what extend the army used sidecars on 16H machines is not known.
Of the total of over 3500 RAF m/c's, the majority had a Norton Model G sidecar.
The Model G was introduced in 1938. The sidecar frames were typically Norton, but bodies were probably made by Swallow (owned by Jaguar).

 Model G sidecar as advertised in 1938 Norton catalogue.

Variation one:
Sidecar for passenger, civilian style.

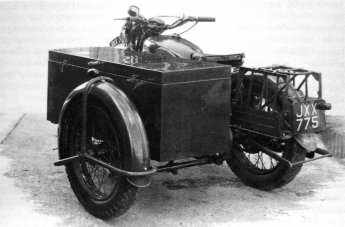

Variation two:
Sidecar for transport of goods with a so called "AA type" sidecar box.

(This later type apparently referred to the pre war (UK) Automobile Association sidecars which were used to carry tools and basic spare parts to keep members of the AA mobile in case of break downs. These boxes were also used by the Dutch "Wegenwacht" after the war, but then mounted to BSA's or Harley Davidsons.)

First variation mentioned in each row is the oldest, variations in one column not necessarily same time frame between rows.
